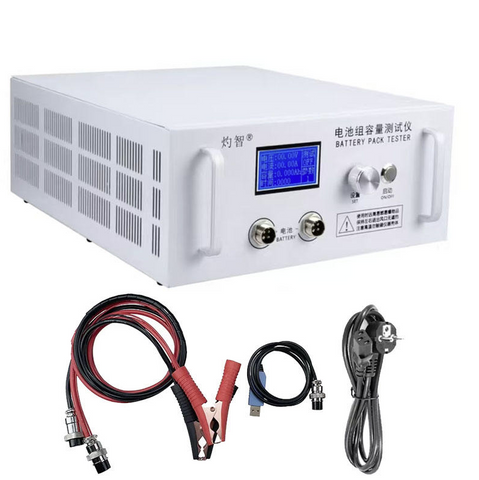

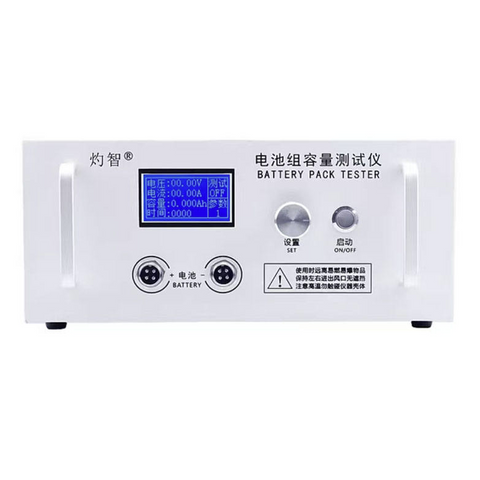

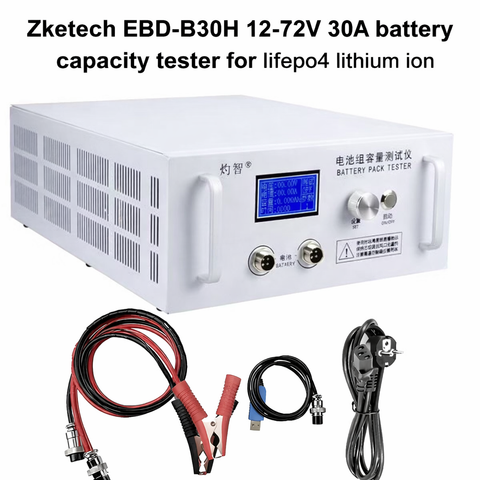

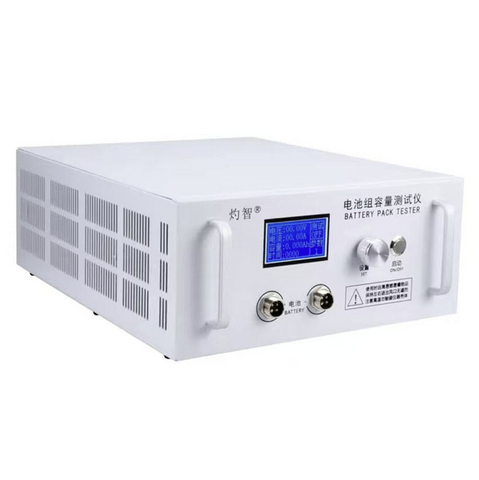

Zketech EBD-B30H 12V/24V/48V/60V/72V 30A Discharging Li Lithium Li-ion Lifepo4 Battery PACK Capacity Tester

Discharge current:
36V-72V battery pack: 0.50-30.00A, minimum step 0.01A
24V battery pack: 0.50-20.00A, minimum step 0.01A
12V battery pack: 0.50-10.00A, minimum step 0.01A

Power supply: AC220V
1) Model: EBD-B30H
2) Voltage Range: 0.1-89.00V
3) Current Range: 0.10-30.00A, stepper 0.01A (current adjusted automatically according to the
power limits)
4) Discharging mode:
DSC-CC: Discharging batteries at a constant current, support testing battery capacity or current
of power supplies.
5) Voltage accuracy: 0.01V, ±0.5%.
6) Current accuracy: 0.01A±0.5%.
7) Capacity detection: < 10Ah, 0.001AH; 10-100Ah, 0.01Ah; > 100Ah,0.1Ah
8) Discharging power: continuous rating is 180W and instantaneous power could reach 200W
9) Four lines: voltage and current channels separated for high test accuracy
10) LCD Display: voltage, current, time, capacity, power, energy, and etc

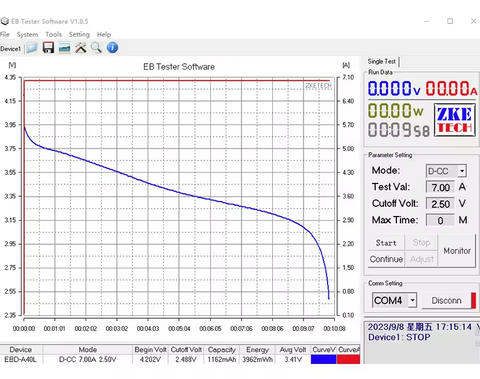

11) PC Connection: the tester can connect to a computer through a designated USB-TTL cable
for more functions, like graphs, calibration, firmware upgrade, and test  circulation.
