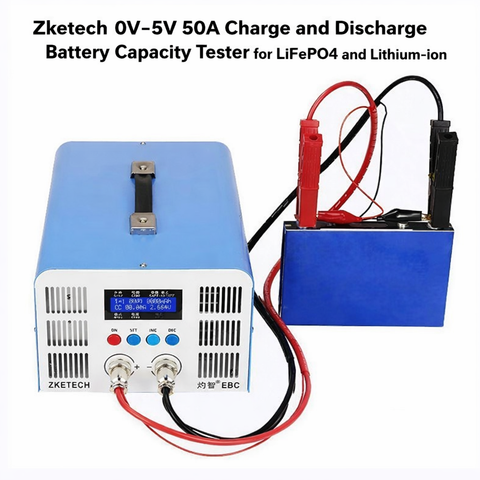

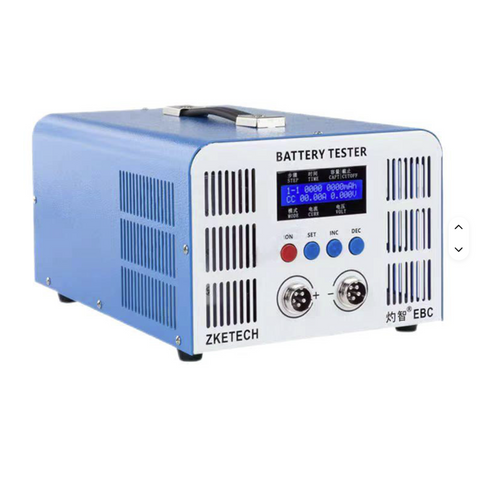

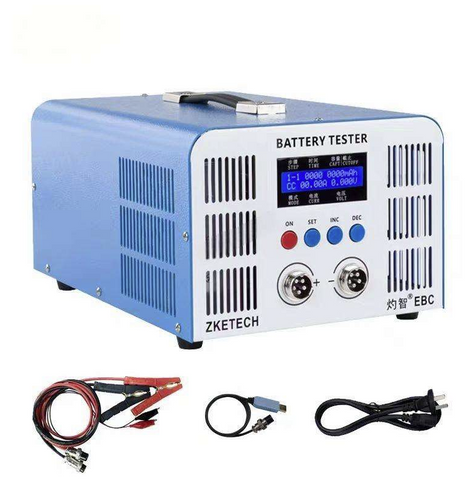

ZKETECH EBC-A50L 0V to 5V 50A Charge and Discharge Battery Capacity Tester
|
Specifications
|
|
|
Voltage range
|
0-5V
|
|
Voltage accuracy
|
0.2%±0.03V
|
|
Current range
|
0.1-50A
|
|
Current accuracy
|
0.2%±0.01A
|
|
Discharge mode
|
Constant-current discharge
|
|
Discharge terminate
|
Time/ voltage below the set limit / manual
|
|
Discharge power
|
Max 250W
|
|
Charging mode
|
CV constant current and constant voltage charging
|
|
Charge terminate
|
Time/ current below the set limit / manual
|
|
Capacity accuracy
|
Within 10Ah, resolution of 0.001Ah10Ah – 100Ah, resolution of 0.01Ah
Above 100Ah, resolution of 0.1Ah |
|
Power supply
|
AC 200-240V ( 110V can be customized)
|
|
Heat dissipation
|
Fan active cooling
|
