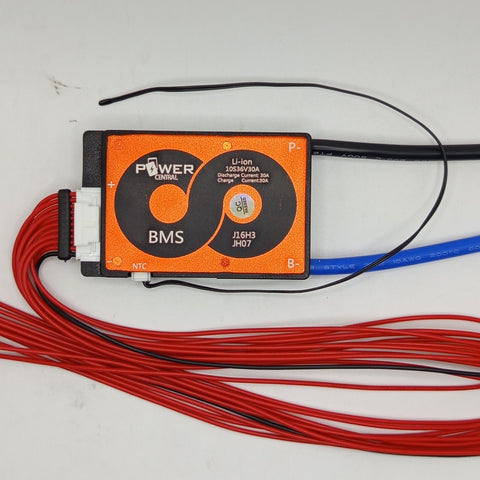

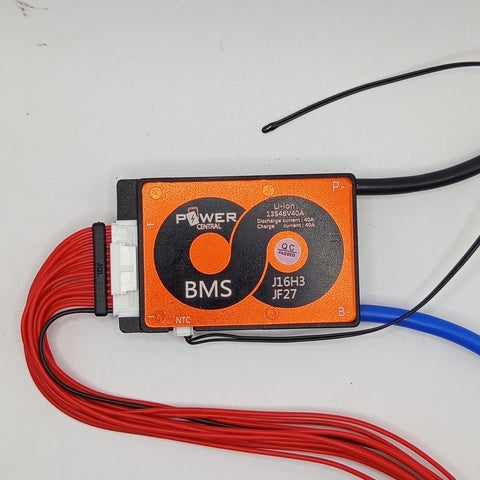

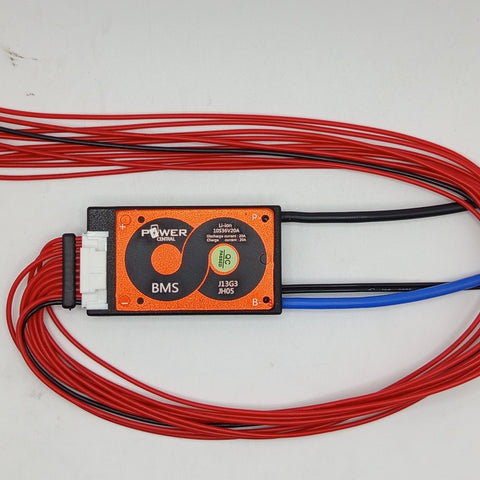

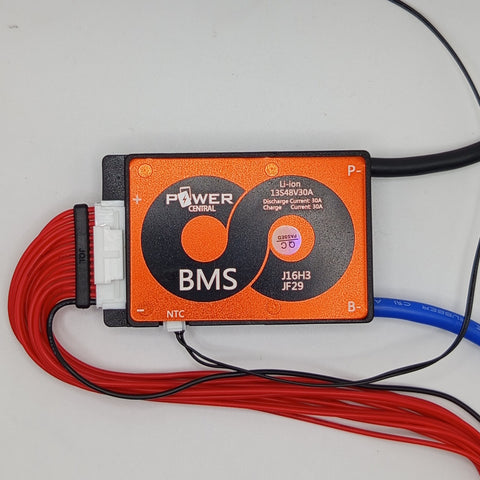

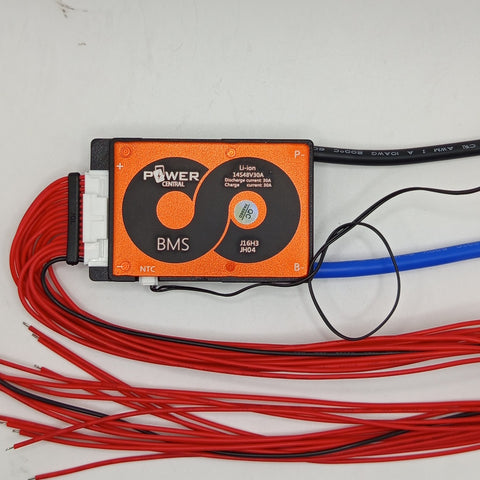

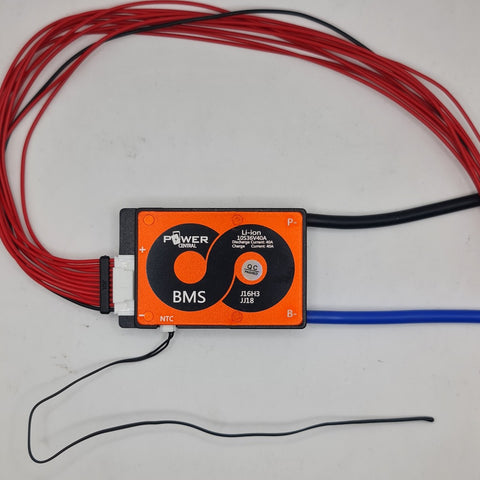

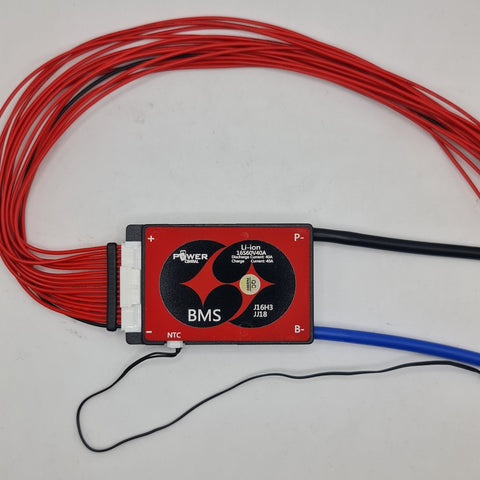

Power Central 3S 6S 13S 14S 16S 20S 12V 24V 36V 48V 52V 60V 72V lithium ion BMS Manufactured by Daly

  • ₱849.00
  • Save ₱0

Temp sensor included

Overcharge detection voltage 4.25 ± 0.025V

Overcharge protection delay 1S

Overcharge release voltage 4.15 ± 0.05V

Power balance detection voltage 4.18V

Power balance release voltage 4.18V

Power Balance Current 30 ± 5mA

Over discharge detection voltage 2.7 ± 0.1V

Overdischarge detection delay 1S

Over discharge release voltage 3.0 ± 0.1V

discharge over current protection delay 1S

discharge over current protection condition :disconnects the load

Short circuit protection conditions External load short circuit

Short circuit detection delay 250uS

Short circuit protection release condition Disconnect the load

Temperature protection

Self-power working current ≤ 100uA

Self power consumption sleep current (battery over discharge) ≤ 20uA

Operating temperature range -40 / + 80 celsius
