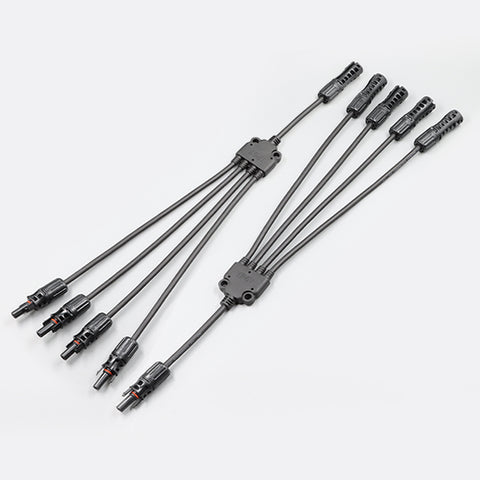

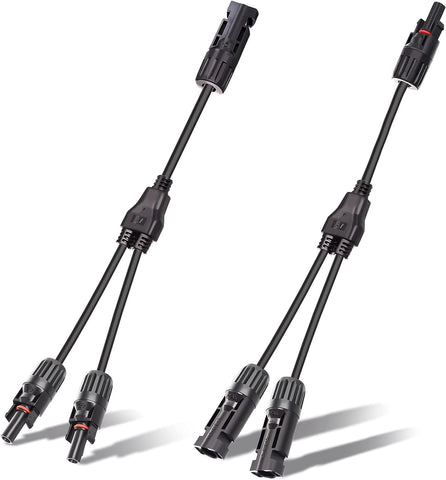

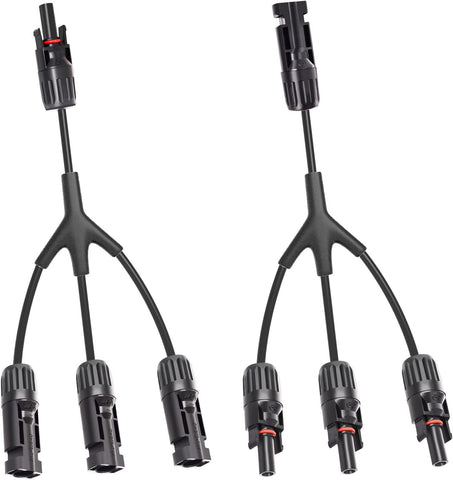

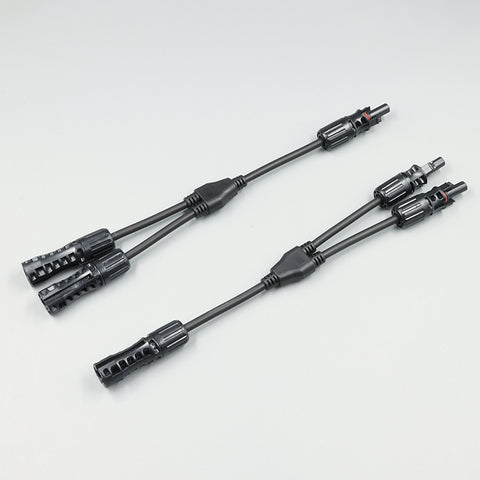

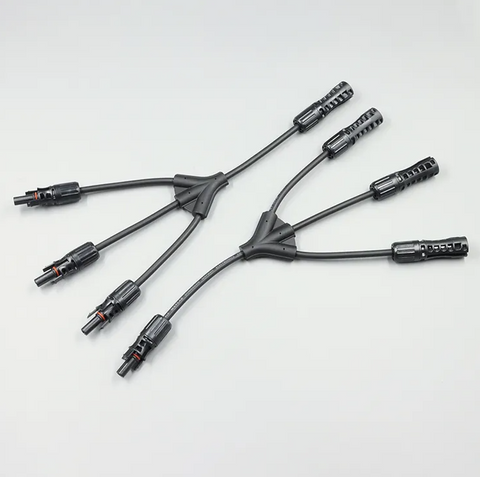

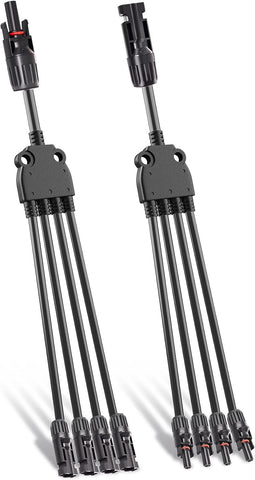

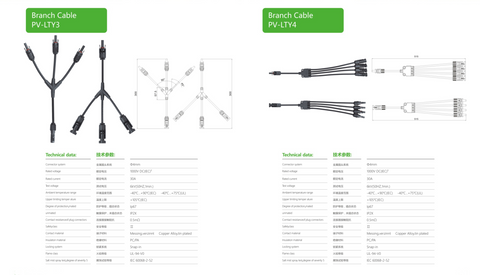

MC4 1000V 1500V Parallel Solar Panel Connector Y Branch 1 to (2,3,4) 1 x Male 1 x Female IP67 30A

description
-Solar Connector Conductor pin is tinned Copper: made of PPO + PA material, It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load.
-With excellent aging resistance and UV endurance, it can be used in harsh environment.
-It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.
-Solar Male/Female Connectors, Compatible with different insulation diameters (2.5m㎡--6m㎡/14AWG - 10AWG).

Features
- Quick & simple assembly processing and simple removal of plugs
- Compatible with different insulation diameters
- Double seal ring, better waterproof
- Connection by the crimping tool
- Insulation Material: Made of PPO + PA material.

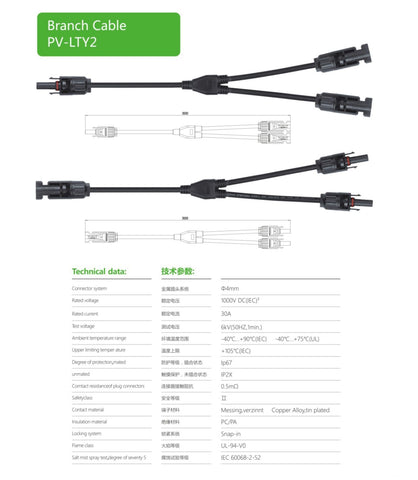

Specifications
Maximum working voltage: DC 1000V
Rated Current: 30A
Suitable for: 2.5mm²( AWG14 ), 4mm²( AWG12 ), 6mm²( AWG10 )
Contact resistance: ≤1mmΩ
Pollution degree: 2
Temperature Range: -40 ℃ ~ +125 ℃
Flame class: UL94-V0
Waterproof Class: IP67
Insertion force: ≤50N
Withdrawal force: ≥50N
