LiitoKala Lii-500 Lithium Battery charger for 18650 26650 AA AAA battery LCD battery capacity

  • ₱999.00

Product parameters

★Input Current: DC 12V 2A(min)

★Output Current: 300mA/500mA/700mA/1000mA

★Output Voltage: 1.48V / 4.2V

★Discharger Current: 300mA/500mA

★USB output:5V/1000mA

★Standby Current: < 15mA

★Size: L * W * H/162*96*36mm

★For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA 18650 26650 18490 18350 17670 17500 16340 RCR123 14500 IMR 10440

Instructions for use

●Charge: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.

●Fasttest: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Fasttest mode and press "current" to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.

●Nortest: Same operation as Fasttest.


■In the "Fasttest or Nortest" mode, if the choice of 300mA / 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in "Fasttest or Nortest" mode. Because the discharge current at this time is 500mA.

■USB for the boost output, only 3.7V lithium-ion battery is valid, NiMH battery is invalid.The output current is 1000mA.USB is not output when the charger is powered up.

■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof. Internal resistance (mR) test results error is relatively large.

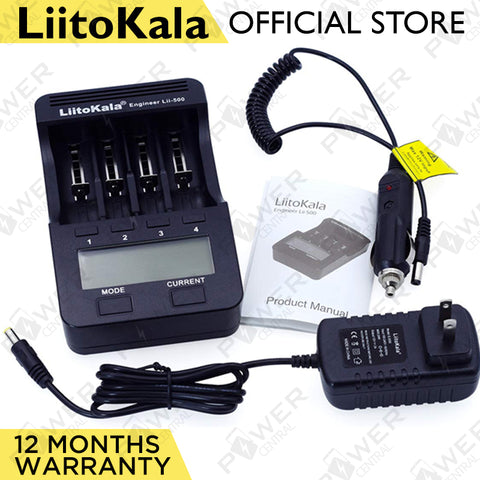

Product included:Lii-500 Charger + 12V / 2A adapter (US)

Dear customers, the charger generates heat and some new machine smell when charging the battery. But it is all within the scope of normal and safe. Lii-500 charger features " high temperature protection, over charge protection ". It is a safe and reliable chargers.
