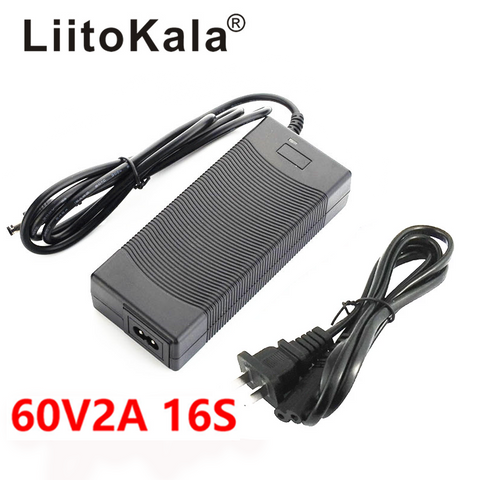

LiitoKala 12V 36V 48V 60V 2A Lithium Ion charger 5.5*2.1 3S 10S 13S 16S 18650 battery E Bike Scooter

  • ₱1,199.00
  • Save ₱0

A. Technical data

DC 5.5*2.1MM

Input voltage: 100-240V AC

Max. output voltage

- 12V Model: 12.6V

- 36V Model: 42V

- 48V Model: 54.6V

- 60V Model: 567.2V

Max. output current:

- 36V/48V60V Model: 2A

- 12V Model : 5A

Line frequency: 50-60Hz

Efficiency(at 100% load): >=85%

Ripple: <=1%*Vo

Temperature range: 0-45'C

Relative humidity: <65%

B. Protection

Over voltage protection

Over current protection

C. General specification

3-step charging control (pre-charge-CC-CV)

Option: a) NTC inside

b) 100% cut off when battery fully charged

Dual color LED indicator: (Charging: Red; Fully charged or no load: Green)

Light weight and compact

High efficiency and low power consumption

E. Environmental specification

Operating temperature: 0C ~ 45C

Storage temperature:-20C ~ 70C

Humidity < 65%
