JBD Smart BMS DB24SA03 SP14S004 7S-24S 20 to 80A Lifepo4 Lithium ion Bluetooth 24V 48V 60V
Specification
Model: DB24SA03
Cell specifications: 7~24 strings battery
Interface type: Charge and discharge are both at the same port
Charging voltage: 3.6V*Number of strings ; 4.2V*Number of strings
Working voltage: 2.30~4.25V
Continuous charging current: 40A-80A
Continuous discharging current: 40A-80A
Consumption of running: ≤10mA
Consumption of sleep: ≤1mA(Including the average power consumption during one self-wake-up of 6S.)
Sleep conditions: Delay 60±20s under no current \ communication \ protection state (settable)
Circuit resistance: ≤10m2
Sleep wake-up current: ≤1A±0.3A
Operating temperature: -20°C~75°C
Size: 118±1mm * 70±1mm * 15±2mm
Product Introduction

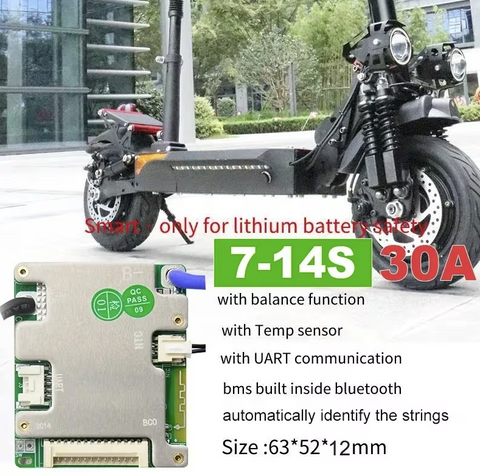

Model: SP14S004
Applicable Battery Type:3.7v Li-ion/3.2v Lifepo4 Battery.
Support Number Of Strings: automatically identify 7-14S.
Size:63*52*12mm.
Continuous current 20A,peak 60A continue 1s.
Continuous current 40A,peak 120A continue 1s.
Balance Model:Static/Charge balance.
Balance Current:20-55mA.
Temperature Sensor:1pc Internal,1pc External.
Application For:Electric scooter,Electric scooter,Electric bycicle,Electric Tools,ect.
Package included:BMS with Built-in BT*Balance Wires.
