JBD Hardware Li ion BMS 13S 16S 20S 48V 60V 72V 20A to 100A Lithium Battery BMS

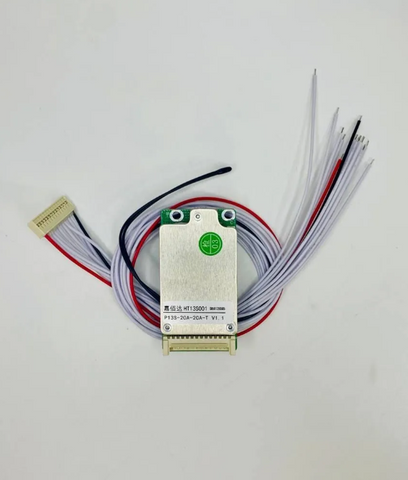

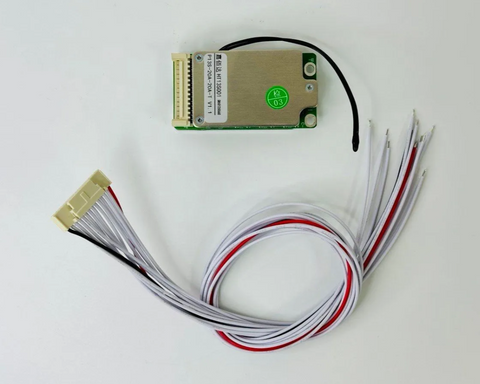

HT13S001 Normal bms
Quick Details
Model Number: HT13S001
Place of Origin: Guangdong, China
Supplier Type: manufacturer
Brand Name: JBD
Product name: BMS
Electricity: 20A
Voltage: 48V

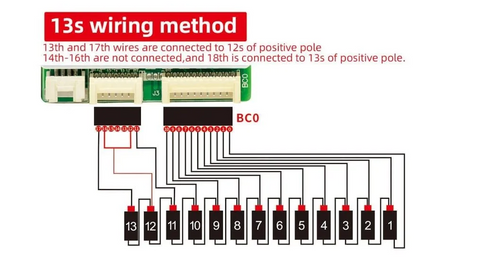

Number of strings: 13s 48v
Same port with balance function: Yes
Usage: Li ion Battery Pack
Application: E-bike
Size: 60mm*51.5mm*9mm
Overcharge Protection Voltage4.25V ± 0.05V per cell
Over-discharge Protection Voltage2.65V ± 0.1V per cell

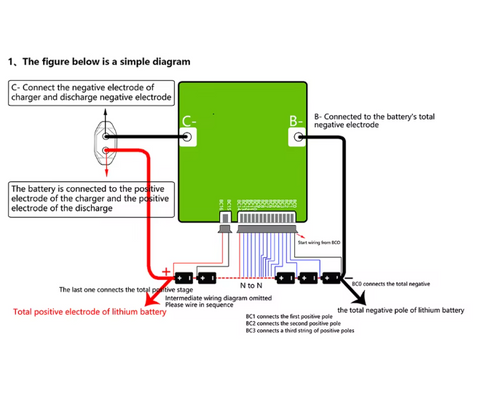

Configuration same port (Common port for charging and discharging)
Cell Balancing passive balancing built-in

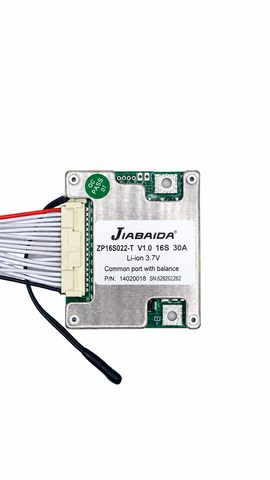

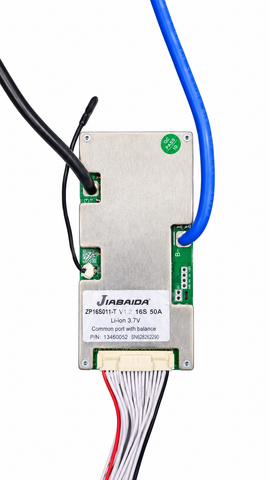

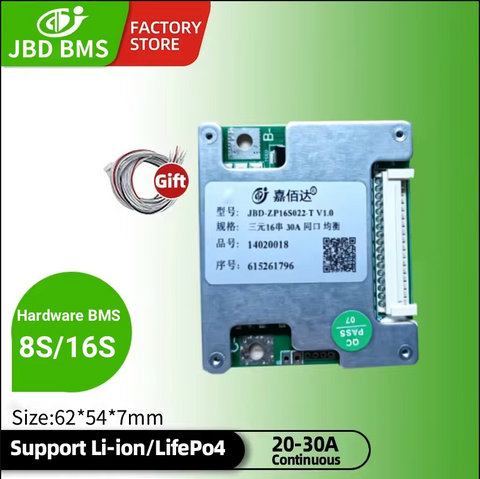

16S 60V Li ionBMS 30A to 50A

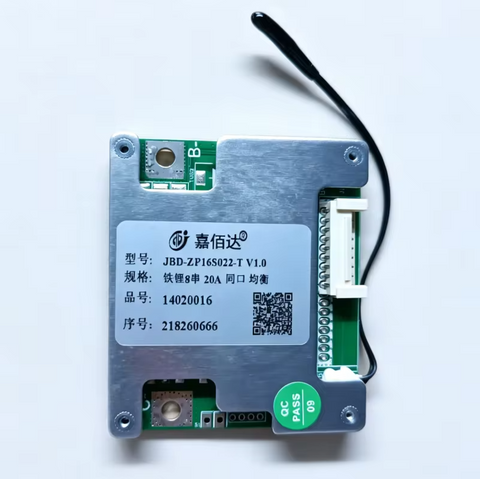

Model Number: ZP16S022

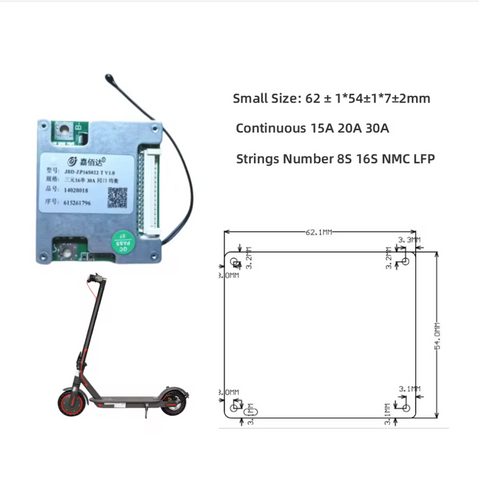

size: ZP16S022 62mm * 54mm*7mm
Voltage: 60V
Current: 30A to 50A
 Strings: 16s
Over Charge Detection Voltage: 4.25 ± 0.025V
Over Charge Detection Delay Time: 1.S
Over Charge Release Voltage: 4.15 ± 0.05V
Cell balancing Detection Voltage: 3.5V
Cell balancing Release Voltage: 4.18V
Cell balancing Current: 50±5mA
Over Discharge Detection Voltage: 2.7 ± 0.1V
Over Discharge Detection Delay Time: 0.5S
Over Discharge Release Voltage: 3.0 ± 0.1V
Over Current Protection Condition: Disconnect the load
Detection Condition: Exterior Short Circuit
Detection Delay Time: 200uS
Release Condition: Disconnect the load
Overtemperature Discharge Protection: 70C
Overtemperature Discharge Release: 50C
High temperature Protection: 85C
High temperature Protection Release: 64C

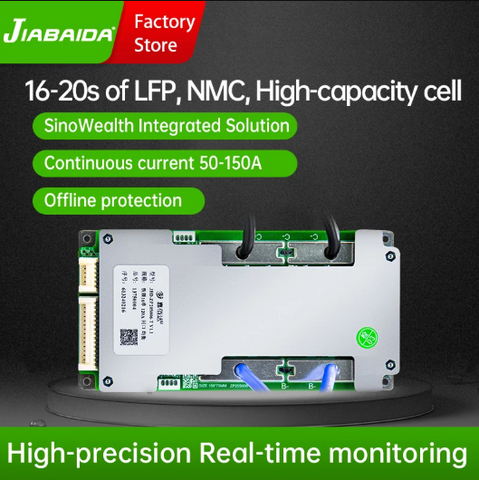

20S 72V lifepo4 BMS 50A to 100A

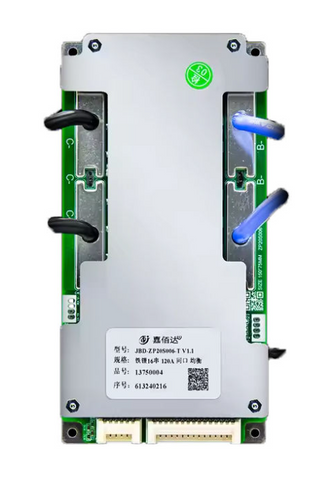

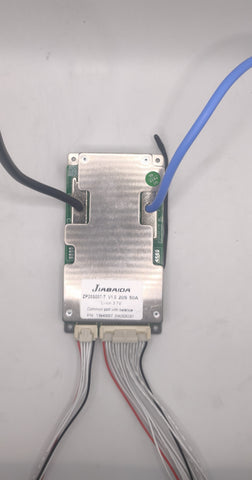

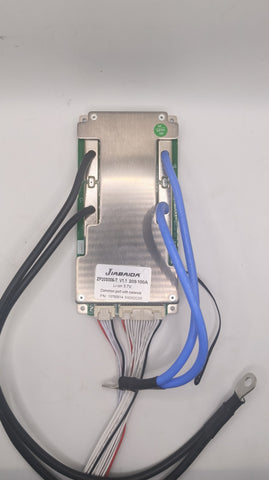

Model Number: ZP20S006  ZP20S007
Size: ZP20S006  140mm * 65mm *20mm
size: ZP20S007 95mm * 65mm*12mm
Voltage: 72V
Current: 50A to 100A
Strings: 20s
Over Charge Detection Voltage: 4.25 ± 0.025V
Over Charge Detection Delay Time: 1.S
Over Charge Release Voltage: 4.15 ± 0.05V
Cell balancing Detection Voltage: 3.5V
Cell balancing Release Voltage: 4.18V
Cell balancing Current: 50±5mA
Over Discharge Detection Voltage: 2.7 ± 0.1V
Over Discharge Detection Delay Time: 0.5S
Over Discharge Release Voltage: 3.0 ± 0.1V
Over Current Protection Condition: Disconnect the load
Detection Condition: Exterior Short Circuit
Detection Delay Time: 200uS
Release Condition: Disconnect the load
Overtemperature Discharge Protection: 70C
Overtemperature Discharge Release: 50C
High temperature Protection: 85C
High temperature Protection Release: 64C
