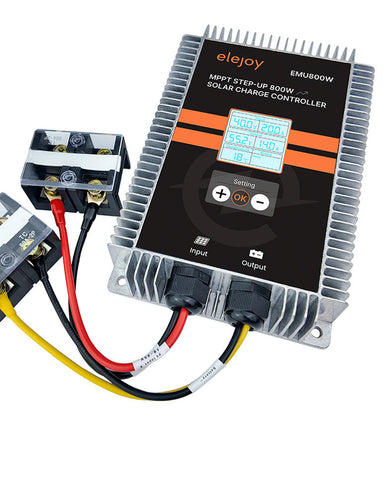

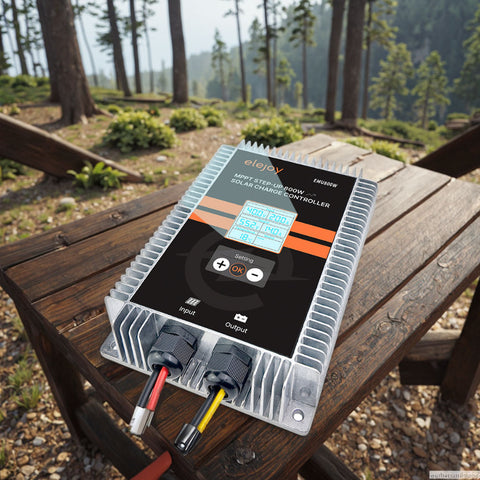

Elejoy EMU-800W Step up 24V to 85V Adjustable MPPT Solar Charge Controller
Professional MPPT solar charge controller factory in China
All of the MPPT solar charge controllers have passed CE certification.
MPPT: Maximum Power Point Tracking
The MPPT controller utilizes Solar Maximum Power Point Tracking (MPPT) technology to extract maximum power from the solar array. The tracking algorithm is fully automatic and does not require user adjustment. MPPT technology tracks the array maximum power point as it varies with weather conditions, ensuring that maximum power is harvested from the array throughout the course of the day.

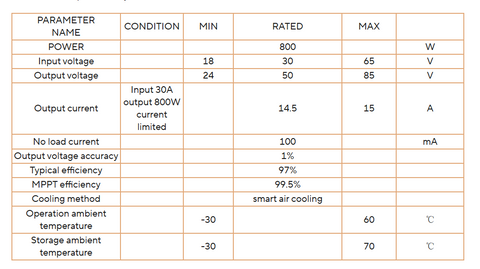

PRODUCT FEATURE
•Model: EMU800W
•Pure Digital Algorithm Current Mode Control with Cycle-by-Cycle Current Limiting
•Compatible with 24V/36V/48V/60V/72V Lead-Acid, Lithium, and LiFePO4 Battery Systems
•Maximum Output Power: 800W
•Input Voltage: 18-65V, Input Current: 0-30A
•Adjustable Output Voltage: 24-85V, Output Current: 0-15A
•Modulation Methods: PWM, COT
•High-Definition LCD Display
•High-Efficiency Synchronous Rectification Design
•Rainproof, Dustproof, and Shockproof
APPLICATION AREA
- Solar power generation
- Outdoor energy storage power supply
- RV backup power supply
- Household appliances
- Lighting
- Digital products
- Solar powered toy car
