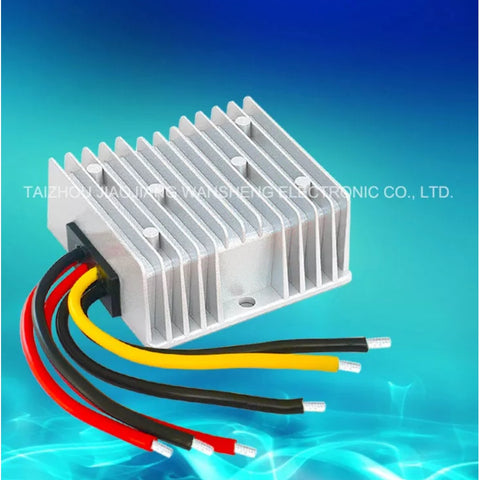

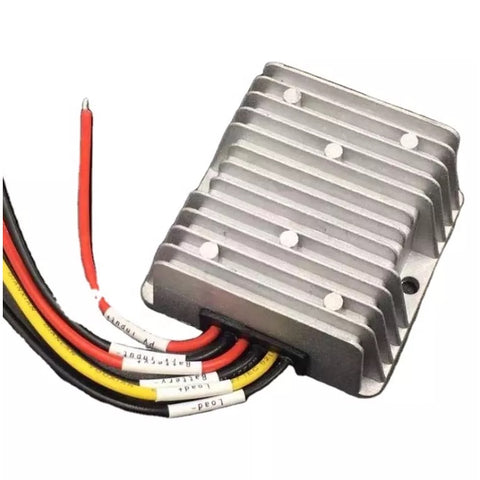

ELEJOY 14.6V Lifepo4 MPPT Solar Charge Controller 99% MPPT Efficiency Solar Battery Charger

PRODUCT NAME: MPPT SOLAR CONTROLLER

MODEL WS-M300-14.6V

CHARGING MODULE:

PHOTOVOLTAIC INPUT POWER: 300W or 150W or 100W

PHOTOVOLTAIC INPUT VOLTAGE: 300W (20-50V) 150W(14-25V) 100w(16-25V)

OUTPUT TO BATTERY VOLTAGE: 14.6V

BATTERY OUTPUT CURRENT:

300W - 20A(MAX 24A)

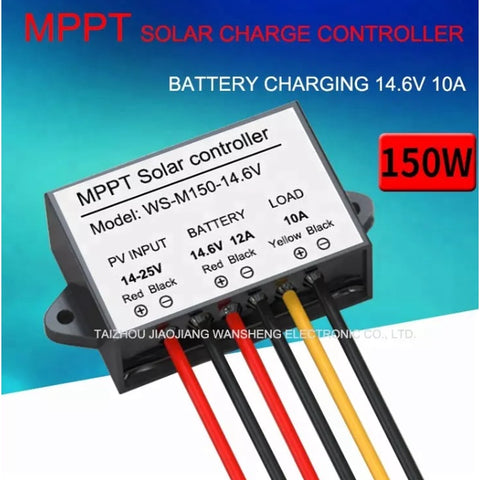

150W - 12A

100W - 8A

PWM CONVERSION EFFICIENCY: 97%

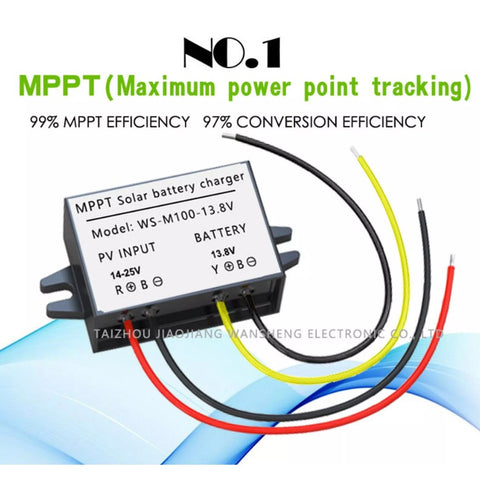

MPPT EFFECTIVENESS: 99%

DISCHARGE MODULE for 300W and 150W version only

INPUT VOLTAGE: EQUAL BATTERY VOLTAGE

LOAD OUTPUT VOLTAGE: EQUAL BATTERY VOLTAGE

LOAD OUTPUT CURRENT: 300W - 20A(MAX 24A), 150W - 10A

LOAD OUT TYPE : Normally open

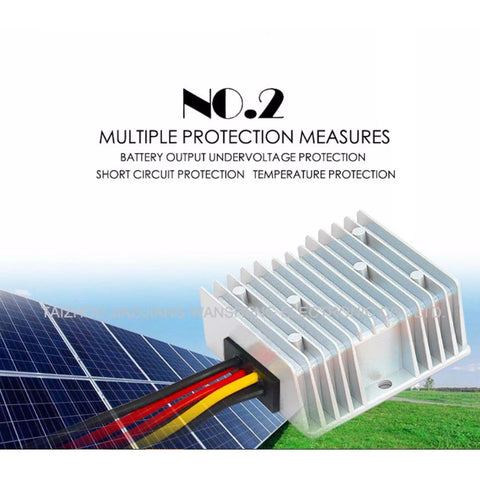

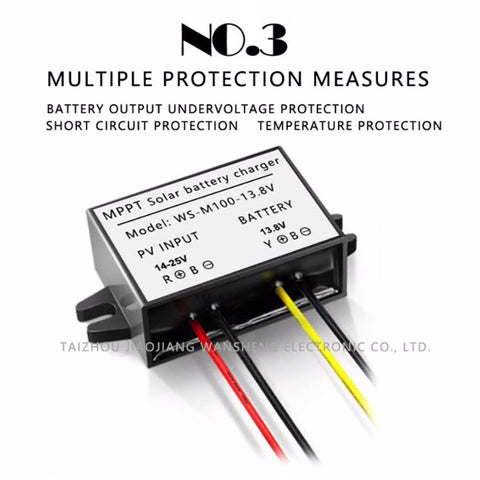

PROTECTION MODULE

BATTERY OUTPUT UNDERVOLTAGE PROTECTION: 11.2V (Delay 10 seconds)

BATTERY SHORT CIRCUIT PROTECTION: YES

SHORT CIRCUIT PROTECTION: YES

TEMPERATURE PROTECTION: YES

PROTECTION CLASS IP: IP67

LINE LENGTH: 10CM

DIMENSIONS: 74mm × 74mm × 32mm

N.W.: 300g
