Charger battery Connectors GX16 Aviation 3 pin AM-1015 T Plug C13 C14 5.5 x 2.1 5521 DC plug SPL-2

GX16 Aviation 3 Pin - Male and female
Specifications:
- Voltage: 3pin (400V)
- Current: 5A
- Environment Temperature: -50~+70℃
- Relative Humidity: The temperature is + 40 ℃ could reach 98%
- Insulation Resistance: Normal conditions no less than 1000 m Ω, Not less than 20 m Ω after the constant temperature test
- Testing Voltage: (50 Hz, RMS) Normal conditions 1500V,After constant temperature test 1200V
- Atmospheric Pressure: 4, 4 kpa
- Vibration: frequency is 10 ~ 100 Hz, accelerated speed is 100 m/s2
- Impact: Frequency is 60 ~ 80 times/min, the acceleration is 250 m/s2
- Centrifugal: Acceleration is 250 m/s2
- Type: 3 pin
- Material: Metal
- Color: silver
-Size: 45mm x 19mm/ 1.8" x 0.8"

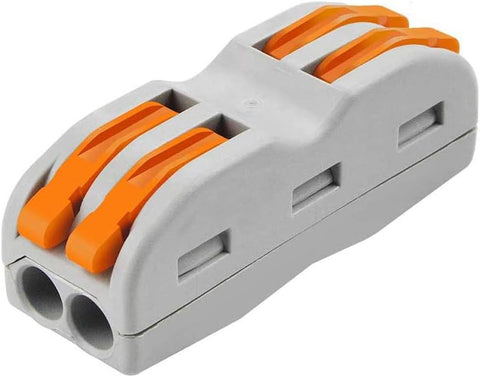

Lever-Nut spl-2
Specifications:
- Condition: 100% Brand new
- Model:SPL-2
- Color: Orange and Gray
-Size:39*13.4*14.5mm
-Applicable wire: hard wire/soft wire:0.08- 4.0 mm²
- Max Operating Temperature: 105℃
- Electrical Specs: 32A 250 V / 4KV

5.5x2.1mm 5521 DC
Inline DC Barrel Power Plug. These plugs may also be called DC Coaxial plugs.
- Plug Size: 2.5mm
- Center Pin: 2.5mm
- Outer Diameter: 5.5mm
- Tip Length: 14mm
- Solder Terminals for 18-24 Awg wire
- Adapter Jack Male Length :5 cm

AM-1015 T Plug Deans
Specifications:
- Condition: 100% Brand new
- Model: AM-1015
- Color: red
-Applicable wire: hard wire/soft wire:0.08- 4.0 mm²
- Max Operating Temperature: 105℃
- Electrical Specs: 50A 250 V / 4KV

C13 C14 3 Pin
Adapt For:3 pin
Power Supply:AC 250V 10A
Package included:1pc Plug
Color:Black
Cable Diameter:upto 8mm OD
Male Plug:
Pins Width: 4mm
Width: 28.20mm
Height: 20.90mm
Length: 54.80mm (35.9mm+18.9mm)
Overall length with cable protection shield: 78mm
Power cord diameter acceptable: max.8mm
Fixed by screws
Female Connector:
Length: 59.10mm (39.9mm+19.20mm)
Overall length with cable protection shield: 81mm
Power cord diameter: max.8mm
Fixed by screws
