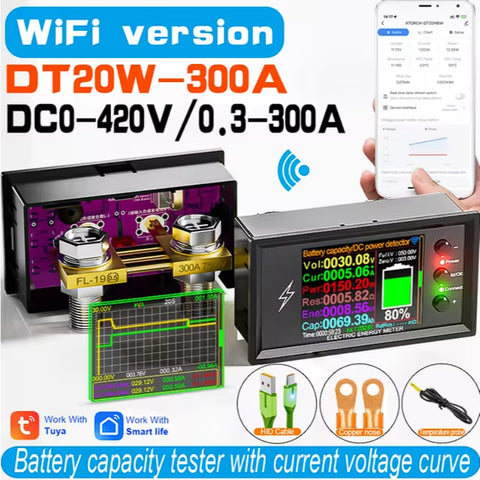

Atorch DT20W DC 0-420V Tuya WiFi Smart Lithium Battery Capacity Power Meter Voltage meter

  • ₱1,999.00

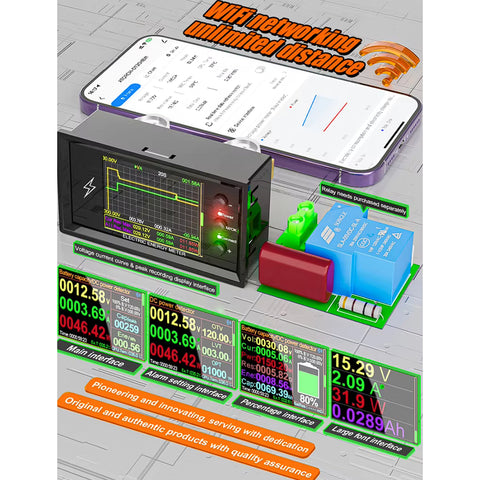

Built in WiFi module

Remote Control:Connect the DT20 meter Wi-Fi to 2.4GHz Wi-Fi, then you can monitor or adjust on your phone through the app at any time anywhere.

Product parameters

① Voltage range:DC 0-420V (Need DC5V independent power supply)

Capacity range: 0-99999AH

Current range:0~30A/0.1~100A/0.2~200A/0.3~300A/0.4~400A/0.5~500A/0.6~600A(optional)

② Support the modification of circuits that require additional relays to be fully charged and fully discharged, which can protect the battery;

③ Support low-voltage, over-voltage, over-Power prompt or power outage (when adding 5V relay circuit); Support bidirectional current testing access,After the line, there is no distinction between the direction of current!

④ Support shunt selection: 100A/200A/300A/400A/500A/600A

⑤The screw and nut specifications: M8
