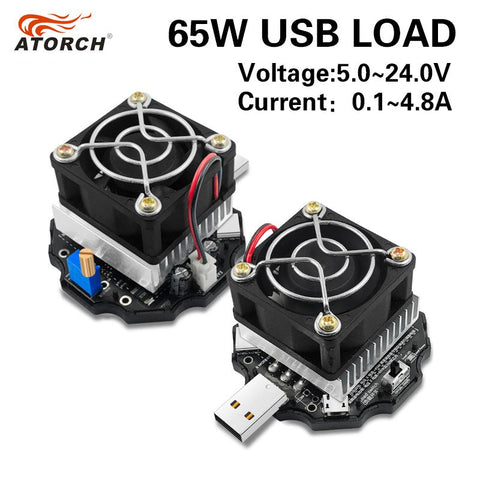

Atorch 18650 capacity battery tester electronic load 65W monitor indicator discharge 5v 12v

Brand Name：ATORCH Certification：CE Origin：CN(Origin) DIY Supplies：ELECTRICAL Model Number：65W Type：Household Battery Tester65W adjustable constant current load parameters:

Input interface: USB-A male input / Android Mirco USB female input / Type-C female input

Discharge tube type: IRFP260N (50A/200V)

Adjust potentiometer: precision multi-turn adjustable potentiometer

Cooling method: intelligent temperature control fan + all aluminum heat sink

Input voltage: DC5~24.0V

Adjustable current: 0.1~4.8A (maximum current is controlled within 65W according to the energy conservation law of the input voltage, according to P=UI calculation principle)

Constant current accuracy: ±2%

Current adjustment method: fine adjustment method using multi-turn resistance

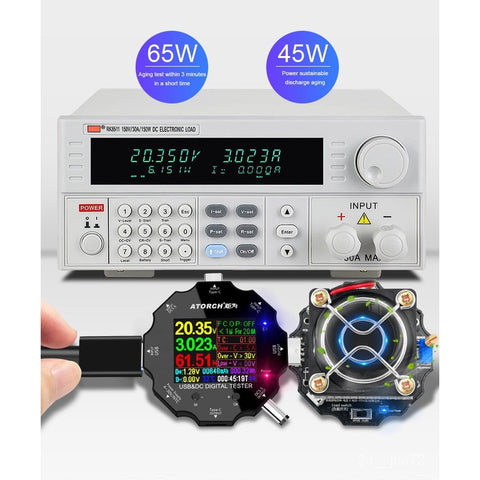

Rated aging power: 45W (sustainable); ultimate aging power: 65W (within 3 minutes in a short time)

Fan control mode: temperature intelligent control (the higher the power, the higher the temperature, the faster the fan automatically increases the speed)

Maximum fan speed: MAX12000±10RPM (large wind speed super high speed fan with adjustable speed)

Product size: 77 x 63 x 45mm

Self-consumption current: <0.02A

Working temperature: -10~+60 degrees Celsius -10~+60°C

Working humidity: 10~80 (no doubt exposed) 10~80 (no doubt)

Working pressure: 80~106kPa
