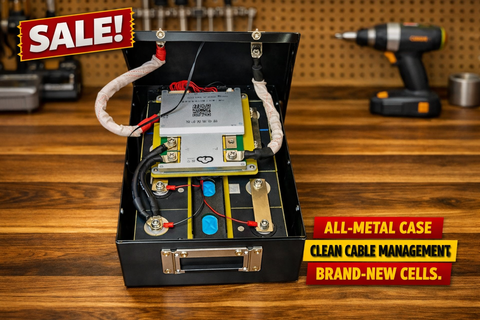

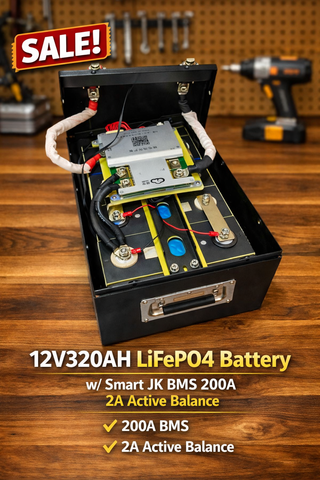

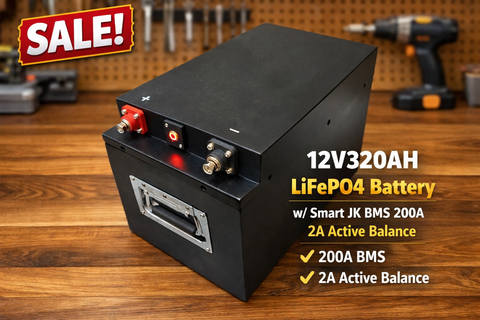

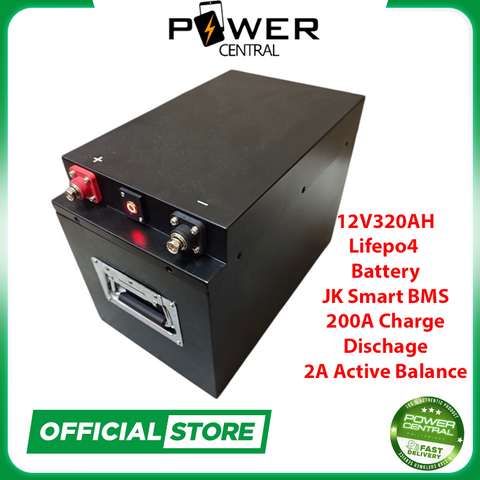

12V320AH Lifepo4 Battery JK Smart BMS 150A 2A active balance

Battery Pack Specification
Voltage Range: 10V to 14.6V
Typical Capacity: 314Ah
Life Cycle: 12000
Standard Charge/Discharge Current: 150A/150A
Pulse Charge/Discharge Current (60s): 300A
Active Balance: 2A
Charging Working Temperature: 0℃~55℃
Discharging Working Temperature: -30℃~60℃
Weight: 29KG
Dimension: 250x240x200mm

Battery Specification
Manufacturer: Gotion
Model No.: GT-314AH-HSEV MINUS
Typical Voltage: 3.2V
Typical Capacity: 314Ah
AC Impedance Resistance: ≤0.3mΩ
Life Cycle: 12000
Standard Charge/Discharge Current: 0.5C/0.5C
Standard Charge Cut-off Voltage: 3.65V
Standard Discharge Cut-off Voltage: 2.5V
Continuous Charge/Discharge Current: 0.5C/0.5C
Pulse Charge/Discharge Current (60s):
Recommended SOC Window: 10%~90%
Charging Working Temperature: 0℃~55℃
Discharging Working Temperature: -30℃~60℃
Self Discharging Rate: <3%
Short Term Storage Temperature (< 1 Month): -20℃~45℃
Long Term Storage Temperature (< 1 Year): 0℃~35℃
Storage Moisture: <95%
Cell Dimension: 207.1*71.95*174.8mm
Cell Weight: 5,630g
Certification: MSDS, UN38.3, CE

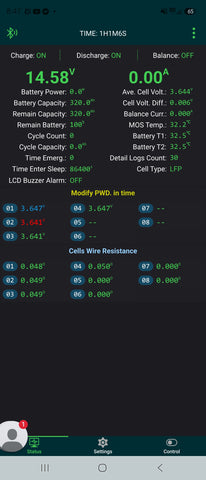

JK BMS Specification
Supply voltage: 10V to 14.6V
Operating power consumption: ≤900 mW
Operating temperature: -30 to 70C
Maximum number of collection strings: 4 S
Maximum balancing current: 2 A
Maximum charging current: 200 A
Maximum discharge current: 200 A
Maximum instantaneous current: 400 A
Maximum internal loop resistance: 0.35
Protective plate size: 152.25*127.26*15.6 mm
Product Weight: 424 g
