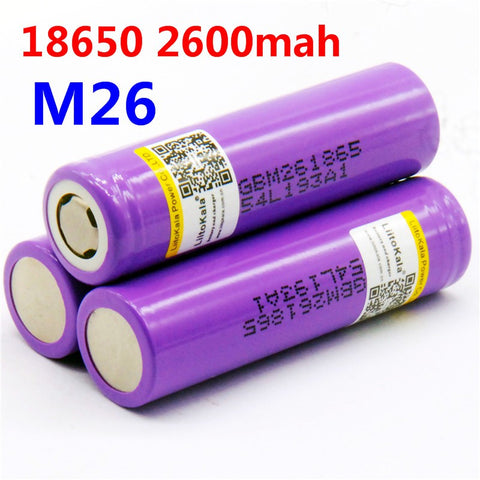

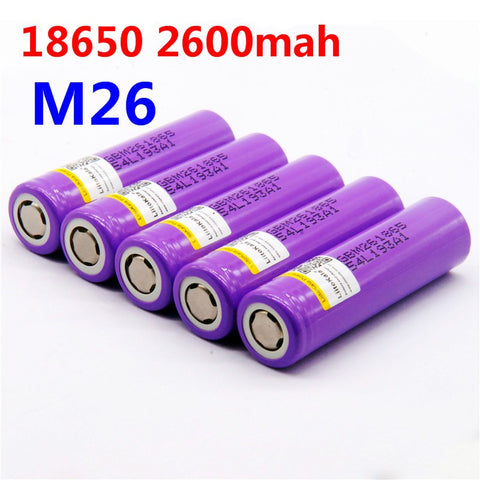

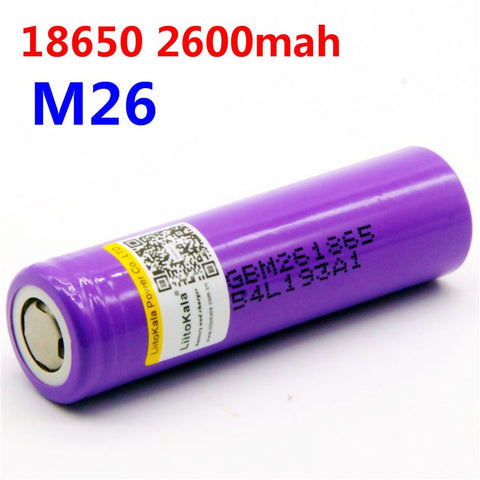

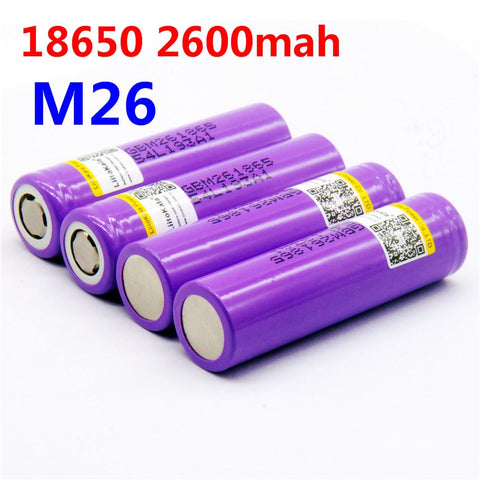

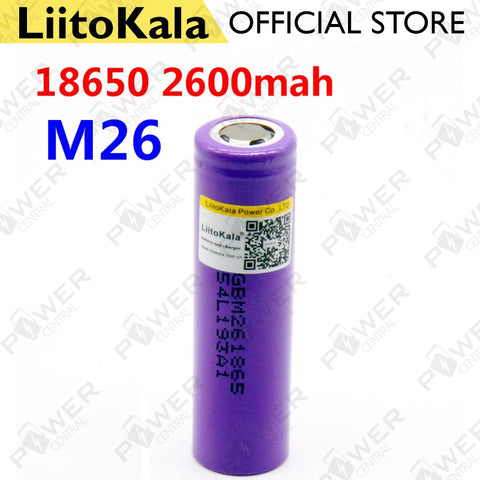

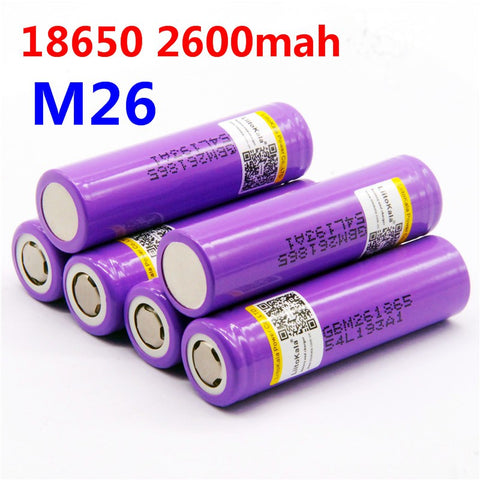

1 pc 100% original LiitoKala for M26 18650 2600mah 10A li-ion rechargeable battery

  • ₱125.00


100% original LiitoKala M26 18650 2600mah 10A 18650 li-ion rechargeable battery power safe battery for ecig/scooter

1. General Information

1.1 Scope This product specification defines the requirements of the rechargeable lithium ion battery to be supplied to the customer Chem.

1.2 Application: Light Electric Vehicle

1.3 Product classification: Cylindrical rechargeable lithium ion battery

1.4 Model name: INR18650 M26

2. Nominal Specification

2.1 Capacity Std. charge / discharge ( Refer to 4.1.1./ 4.1.2) Nominal 2,600 mAh (Cnom) Minimum 2,500 mAh (Cmin)

2.2 Nominal Voltage Average for Std. discharge 3.65V

2.3 Standard Charge (Refer to 4.1.1) Constant current 0.5C (1,250mA) Constant voltage 4.2V End condition(Cut off) 50mA

2.4 Max. Charge Voltage 4.2V

2.5 Max. Charge Current 1.0C(2,500mA)

2.6 Standard Discharge (Refer to 4.1.2) Constant current 0.2C (500mA) End voltage(Cut off) 2.75V

2.7 Max. Discharge Current 10A

2.8 Max. Temperature Limit Max. discharge current at RT 75℃

2.9 Weight Approx. 44.0 g

2.10 Operating Temperature Charge 0 ~ 45℃ Discharge -20 ~ 60℃

2.11 Storage Temperature (for shipping state) 1 month -20 ~ 60℃ 3 month -20 ~ 45℃ 1 year -20 ~ 20℃

3. Appearance and Dimension

3.1 Appearance There shall be no such defects as deep scratch, crack, rust, discoloration or leakage, which may adversely affect the commercial value of the cell.

3.2 Dimension Diameter : Max. 18.4 mm Diameter is defined as the largest data value measured on the “A” area of a cylindrical cell.

Height : 65.0 ± 0.2 mm ( Max. 65.2 mm )
