JBD Hardware Lifepo4 BMS 12V 24V 48V 60V 24V 30A 50A 100A 150A 4s 8S 16S 20S 24S

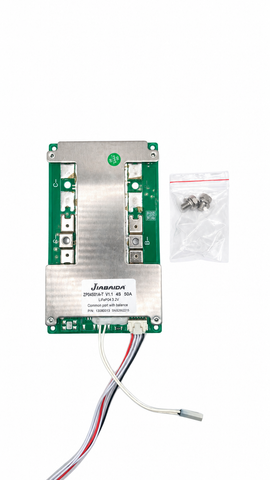

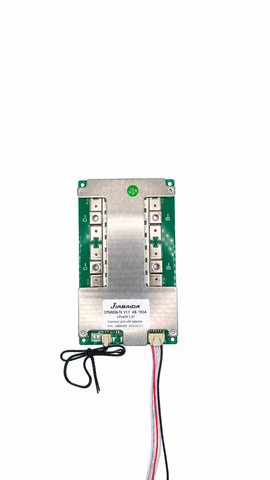

4S 12V lifepo4 BMS 100A
Model Number: ZP04S014/CP04S024
Size: 144mm * 85mm *10mm
Voltage: 12V
Current: 100A
 Strings: 4s
Over Charge Detection Voltage: 3.68±0.05V
Over Charge Detection Delay Time: 1.S
Over Charge Release Voltage: 3.55±0.05V
Cell balancing Detection Voltage: 3.5V
Cell balancing Release Voltage: 3.5V
Cell balancing Current: 50±5mA
Over Discharge Detection Voltage: 2.22±0.05V
Over Discharge Detection Delay Time: 0.5S
Over Discharge Release Voltage: 2.7±0.05V
Over Current Protection Condition: Disconnect the load
Detection Condition: Exterior Short Circuit
Detection Delay Time: 200uS
Release Condition: Disconnect the load
Overtemperature Discharge Protection: 70C
Overtemperature Discharge Release: 50C
High temperature Protection: 85C
High temperature Protection Release: 64C

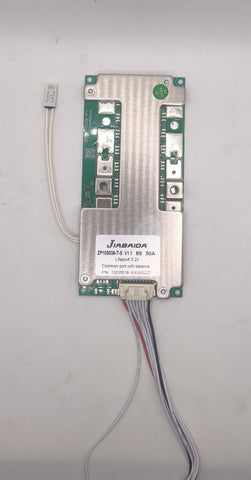

8S 24V lifepo4 BMS 100A to 150A
Model Number: ZP10S036
Size: 140mm * 65mm *20mm
Voltage: 24V
Current: 50A to 150A
 Strings: 8s
Balancing: Passive Balancer
Over Charge Detection Voltage: 3.72±0.05V
Over Charge Detection Delay Time: 1.S
Over Charge Release Voltage: 3.55±0.05V
Cell balancing Detection Voltage: 3.5V
Cell balancing Release Voltage: 3.5V
Cell balancing Current: 200±5mA
Over Discharge Detection Voltage: 2.2±0.05V
Over Discharge Detection Delay Time: 0.5S
Over Discharge Release Voltage: 2.7±0.05V
Over Current Protection Condition: Disconnect the load
Detection Condition: Exterior Short Circuit
Detection Delay Time: 200uS
Release Condition: Disconnect the load
Overtemperature Discharge Protection: 70C
Overtemperature Discharge Release: 50C
High temperature Protection: 85C
High temperature Protection Release: 64C

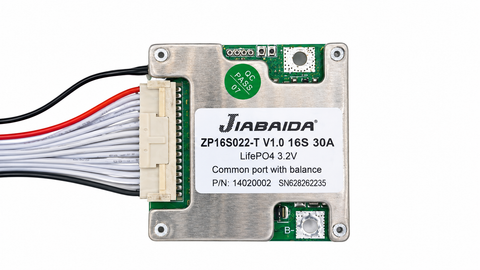

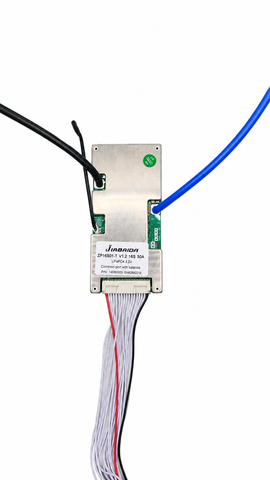

16S 48V lifepo4 BMS 30A to 150A
Model Number: ZP20S006  ZP16S022 ZP16S011
Size: ZP20S006  140mm * 65mm *20mm
size: ZP16S022 62mm * 54mm*7mm
size: ZP16S011 115mm * 54mm*10mm
Voltage: 48V
Current: 30A to 150A
 Strings: 16s
Over Charge Detection Voltage: 3.68±0.05V
Over Charge Detection Delay Time: 1.S
Over Charge Release Voltage: 3.55±0.05V
Cell balancing Detection Voltage: 3.5V
Cell balancing Release Voltage: 3.5V
Cell balancing Current: 50±5mA
Over Discharge Detection Voltage: 2.22±0.05V
Over Discharge Detection Delay Time: 0.5S
Over Discharge Release Voltage: 2.7±0.05V
Over Current Protection Condition: Disconnect the load
Detection Condition: Exterior Short Circuit
Detection Delay Time: 200uS
Release Condition: Disconnect the load
Overtemperature Discharge Protection: 70C
Overtemperature Discharge Release: 50C
High temperature Protection: 85C
High temperature Protection Release: 64C

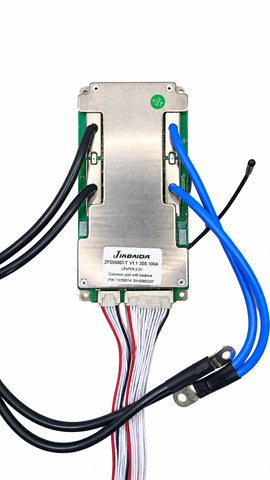

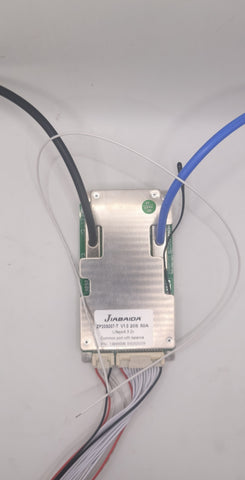

20S 60V lifepo4 BMS 50A to 100A
Model Number: ZP20S006  ZP20S007
Size: ZP20S006  140mm * 65mm *20mm
size: ZP20S007 95mm * 65mm*12mm
Voltage: 60V
Current: 50A to 100A
 Strings: 20s
Over Charge Detection Voltage: 3.68±0.05V
Over Charge Detection Delay Time: 1.S
Over Charge Release Voltage: 3.55±0.05V
Cell balancing Detection Voltage: 3.5V
Cell balancing Release Voltage: 3.5V
Cell balancing Current: 50±5mA
Over Discharge Detection Voltage: 2.22±0.05V
Over Discharge Detection Delay Time: 0.5S
Over Discharge Release Voltage: 2.7±0.05V
Over Current Protection Condition: Disconnect the load
Detection Condition: Exterior Short Circuit
Detection Delay Time: 200uS
Release Condition: Disconnect the load
Overtemperature Discharge Protection: 70C
Overtemperature Discharge Release: 50C
High temperature Protection: 85C
High temperature Protection Release: 64C

24S 72V lifepo4 BMS 100A
Model Number: ZP24SA01
Size: 150mm * 70mm *15mm
Voltage: 72V
Current: 100A
 Strings: 24s
Over Charge Detection Voltage: 3.68±0.05V
Over Charge Detection Delay Time: 1.S
Over Charge Release Voltage: 3.55±0.05V
Cell balancing Detection Voltage: 3.5V
Cell balancing Release Voltage: 3.5V
Cell balancing Current: 50±5mA
Over Discharge Detection Voltage: 2.22±0.05V
Over Discharge Detection Delay Time: 0.5S
Over Discharge Release Voltage: 2.7±0.05V
Over Current Protection Condition: Disconnect the load
Detection Condition: Exterior Short Circuit
Detection Delay Time: 200uS
Release Condition: Disconnect the load
Overtemperature Discharge Protection: 70C
Overtemperature Discharge Release: 50C
High temperature Protection: 85C
High temperature Protection Release: 64C
