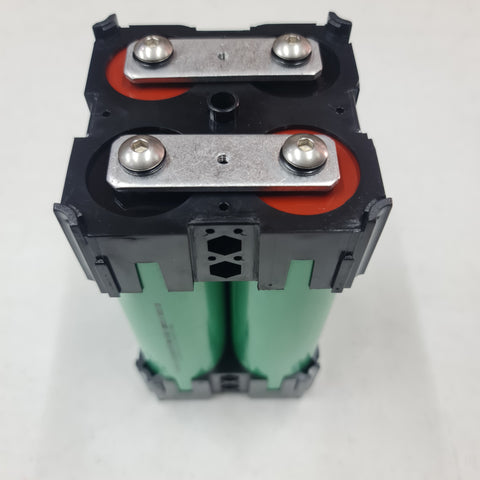

Gushen 26ah 3.2V 5C 46160 Max Discharge 130A Lifepo4 Battery solar with screw busbars

  • ₱2,649.00
  • Save ₱0


Specification
Model GSF46160M-26
Rated capacity 26Ah
Rated voltage 3.2V
Standard charge current 1C (26A)
Max. continuous discharge current 5C (130A)
Max. instant discharge current 10C (260A)
Impedance ≤1.5mΩ
Weight 570±10g
Dimensions Height:178±1mm
Diameter:46±0.5mm
Operating temperature Charge:0~45℃
Discharge:-20~60℃
Storage temperature -10~35℃

Specification
Model GSF46160M-22
Rated capacity 22Ah
Rated voltage 3.2V
Standard charge current 1C (22A)
Max. continuous discharge current 5C (110A)
Max. instant discharge current 10C (220A)
Impedance ≤1.5mΩ
Weight 570±10g
Dimensions Height:178±1mm
Diameter:46±0.5mm
Operating temperature Charge:0~45℃
Discharge:-20~60℃
Storage temperature -10~35℃


Characteristic
Ø Fast charge capability and dynamic charge acceptance
Ø Long Duration
Ø Industry-leading abuse tolerance
Ø Green energy without contaminants
Ø High energy density about 124Wh/Kg
Ø Over-charge and short-circuit resistance, good safety without burning and exploding
Ø Charge under -20℃ can be can be achieved by our own BMS
