Bundle 12V 100AH EVE LF100LA and JK or Daly BMS 100A

Advantage of the Bundle
- Get the best price for the BMS and the Battery
- This are capacity tested cells, so we sorted them close to each capacity to give you well balanced cells
- The cells are top balance already so that you can build it right away
- we have tested the BMS that they are working fine so there will be no hassle on return
- for JK bms we set up the best settings for your build
- No need for crimping, The balance wire and the Main B- and P- already have terminals on it so you can just screw it in place
- Easy to maintain, if there are any bms failure it can easily be change

EVE LF100LA Specification
Specification
- Battery Brand: EVE
- Battery Model: LF100LA
- Min. Capacity: 100Ah
- Tested capacity Grade A (105ah to 106ah)
- Min. Energy: 320Wh
- Initial internal resistance: ≤0.5mΩ Nominal Voltage: 3.2V Charging Cut-off Voltage: 3.65V
- Discharging Cut-off Voltage:2.5V (T>0℃), 2.0V (T≤0℃) Standard Charging Current: 50A(0.5C)
- Max. Continuous charging/discharging Current: 100A 1.0C
- Max. Pulse charging/discharging Current: 200A 2C(30S)
- Cycle Life: 4000 Cycles @80% DOD
- Charging Temperature: 0℃~55℃
- Discharging Temperature: -20℃~55℃
- Dimension: 118.5±0.50mm(H)*160±0.50mm(w)*50.1±0.5mm(T)- Weight: 1.98±0.05 kg Encapsulation mode: U-shaped capsule

JK BMS JK-B1A8S10P
● Number of Battery Strings:3S to 8S.
● Continuous Current:100A.
● Power supply mode: The battery pack is self-powered.
●Single cell voltage detection range:0-5V,error<10mV over full operating range, Typical error value<5mV.
● Support single cell voltage dropout detection.
● Balance current:1000mA,Active Balance(Full State On).
● Wiring method: same port.
● Short Circuit Protection: Support.
● Bluetooth Function: Bluetooth Built-in, Support for Android /IOS Phone.
● Temperature detection:-40～125℃.
● Total voltage detection Detection range:0-100V,<0.5%FSR(FSR=full scale).
●Current Sense Shunt:-150A~300A,Error<0.5%FSR.
●SoC estimation accuracy: Error<8%(operating conditions).
● Battery remaining capacity: error range is less than 8%
● Total Cycle AH Cumulative value is half of the charge/discharge value.
●Operating power consumption:<5mA(without communication)/15mA(485/CAN).
● Standby power consumption:<2mA.
●Operating Temperature:-40~85°C.
● Storing Temperature:-40～95℃.

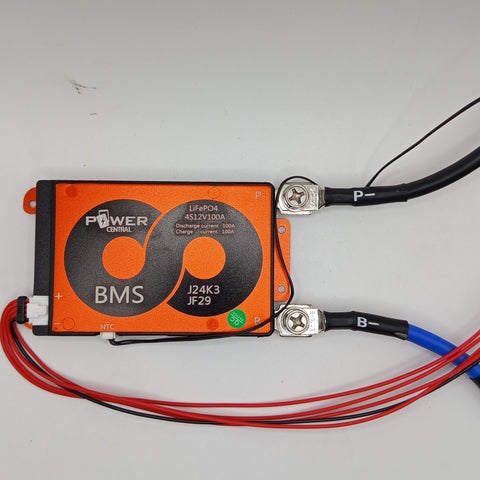

Daly 4S 12V 100A
specification
- Charging Current: 100A
- Discharge Current: 100A
- Over Charge Detection Voltage: 3.65±0.05V
- Over Charge Detection Delay Time: 1±0.5S
- Over Charge Release Voltage: 3.55±0.05V
- Cell balancing Detection Voltage: 3.475V-3.525V
- Cell balancing Current: 70±25mA
- Over Discharge Detection Voltage: 2.3±0.05V
- Over Discharge Detection Delay Time: 1±0.5S
- Over Discharge Release Voltage: 2.7±0.05V
- Over Current Protection Condition: Disconnect the load
- Detection Condition: Exterior Short Circuit
- Detection Delay Time: 10-500uS
- Release Condition: Disconnect the load
