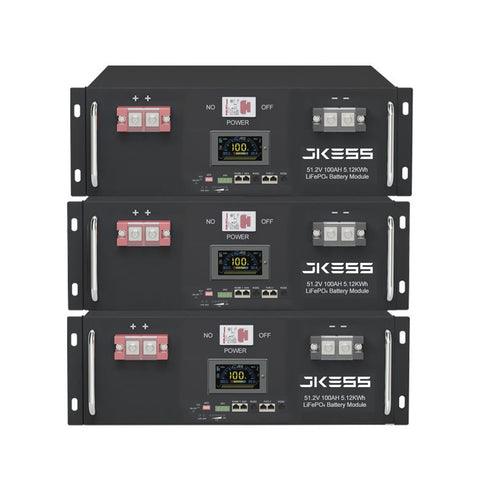

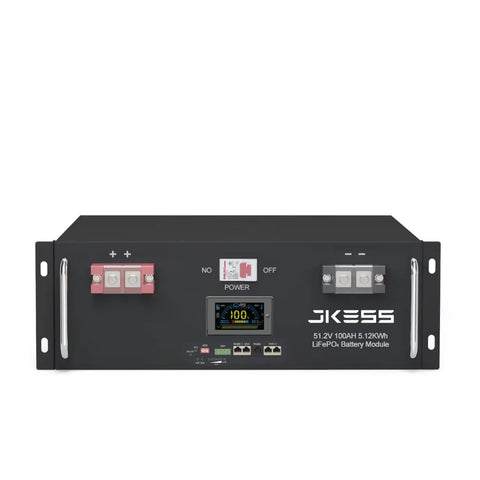

JKESS Case 16S 48V 100ah JK Inverter BMS DIY EVE LF100LA Gotion GT102 Prismatic Lifepo4 battery

NOTE:
- This is only a battery box no battery, BMS and Screen included
- This case is disassemble and will need assemble it yourself
- JK Inverter bms and JK 3.2 LCD are compatible


Battery Type: Prismatic Cells 100AH 105AH 102AH
Output Power:5KWH
Material: Stainless Steel
Max Load Quantity(cells):16S
Battery Management System: JK-PB1A16S10P (Sold Separately)
Brand Name: JK
Model Number:48V 100AH
Place of Origin:China
Dimension (L*W*H):L482*W400*H177mm
Weight:24KG
Nominal Voltage: 48V/51.2V

whats included
- Battery terminals (1 pair of P+terminals and 1 pair of P-terminals)
- Bracket*2
- Epoxy Board-A*18
- Epoxy Board-B*6
- Long flexible Cable (BMS connection)
- Screw accessories*1
- Positive and negative pole cables
- connected in parallel Yes, :Max 16
