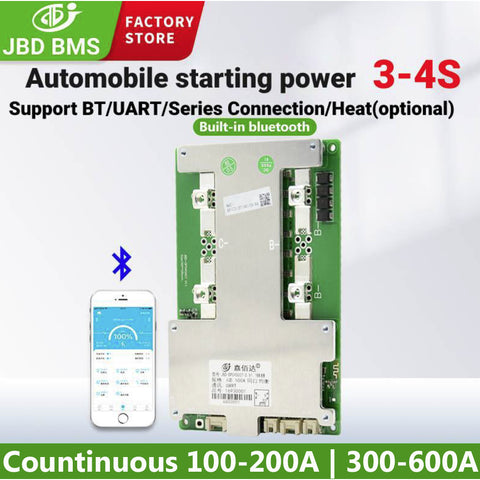

JBD Car Starter BMS 4S 12V 100A 150A 200A Lifepo4 Smart BMS 14.6V 600A Peak Car Starter

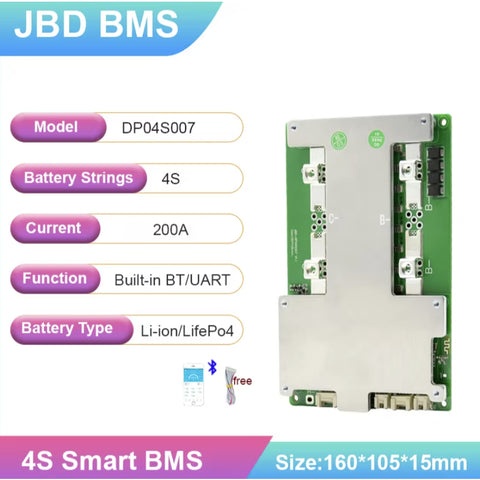

JBD BMS Smart BMS-DP04S007
Product Introduction

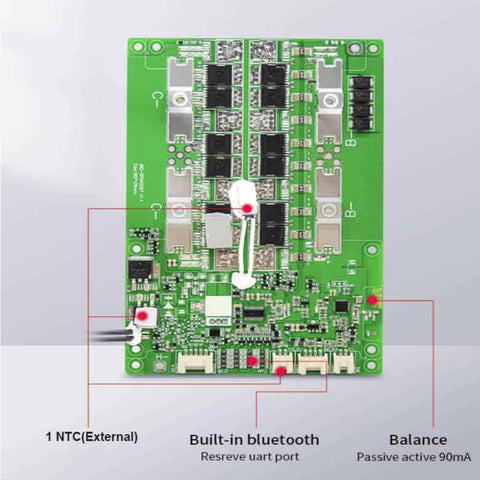

The Smart BMS 4S 100A 150A 200A,with UART communication ,with balance function and temp sensor,
optional support to connect in series, optional heat function, with discharge switch function.
Production Information
Applicable Battery Type:3.2v Lifepo4
Size:160*105*10mm
Support number of strings:4S
S: support to connect in series(4 4S series connection at most)
H:heat function(without heating film)
BT Function: built inside BT
Communication Function: UART
Continuous Current in 100A 150A 200A
Balance Current in 150-250mA
Package included: BMS with Built-in BT*Balance Wires
Car Start version:(kindly, this version bms only shows charge and discharge current above 2A on APP)
BMS 4S 100A UART Car:
BMS 4S 150A UART Car

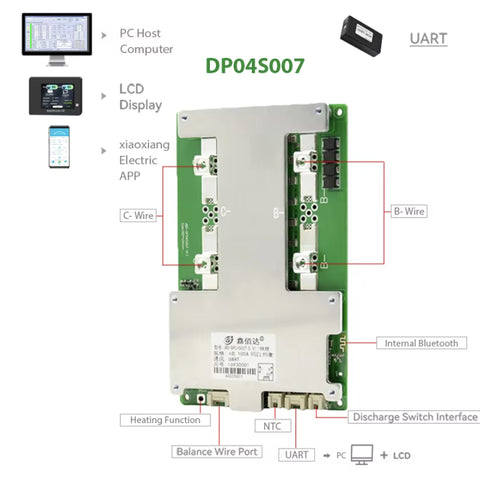

Function Introduction

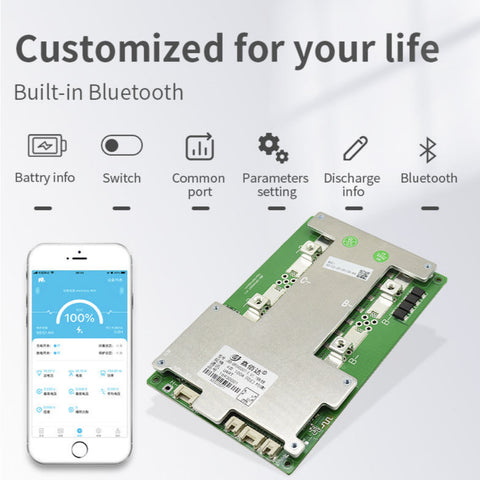

(1)BT-APP in Phone xiaoxiangElectric
(2)UART-JBD PC Tool Box
Monitor and Set parameters on PC.
(3)UART LCD Displayer-Can monitor parameters on LCD displayer.
Attention
(1)All smart bms has BT and UART function
(2)BMS accessories need buy separately
(3)APP Manual and BMS Specification: please contact customer service.
