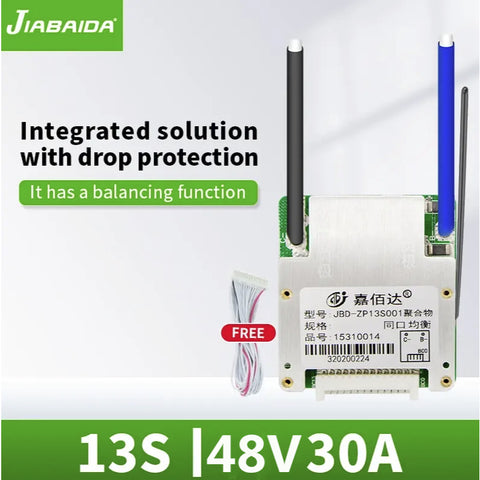

JBD BMS 13S 48V 30A Li ion Lithium Battery PCB Balance and NTC Temperature Sensor Compact
ZP13S001 Normal bms
Quick Details
Model Number: ZP13S001
Place of Origin: Guangdong, China
Supplier Type: manufacturer
Brand Name: JBD
Product name: BMS
Electricity: 30A
Voltage: 48V
Number of strings: 13s 48v
Same port with balance function: Yes
Usage: Li ion Battery Pack
Application: E-bike

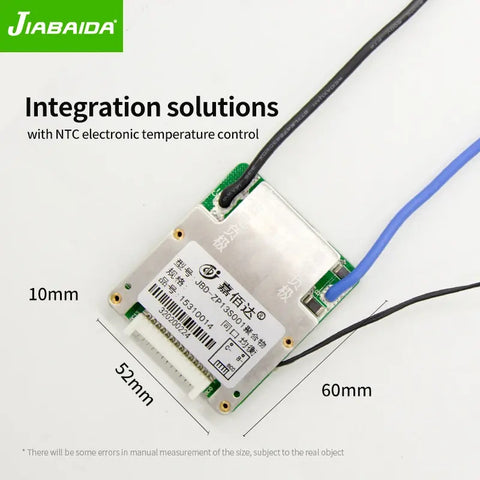

Size: 60mm*52mm*10mm
Packaging & Delivery
Selling Units: Single item
Single package size: 23X13X16 cm
Single gross weight: 1.000 kg
Package Type: Manufactuers will upgrade the packaging sometimes,please refer to the actual object received.
Package Content : 1* BMS *Balance wires
Product Description
JBD-ZP13S001
JBD-ZP13S001 is designed by Dongguan Jibaida Electronic Technology Co., Ltd, is the same-port protection plate for 13 battery packs of electric bicycles, electric motorcycles and other products. Suitable for different chemical properties of lithium cell, such as lithium ion, lithium polymer, lithium iron phosphate, etc.Protection plate with strong carrying capacity, continuous discharge current up to 30A.
● Section 13 Integrated protection scheme
● Balancing
● Various protection functions for charging and discharging
● Discharge overcurrent, short circuit protection functional processes of hardware
● Temperature protection function
● Very low static current consumption

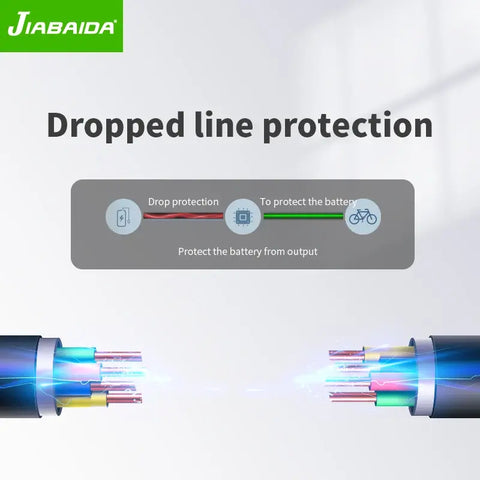

● Drop line protection function
Application
Battery series: Battery Rated Voltage
13S 3.7V(48V)
